Kawasaki EDR "Black Box" Data

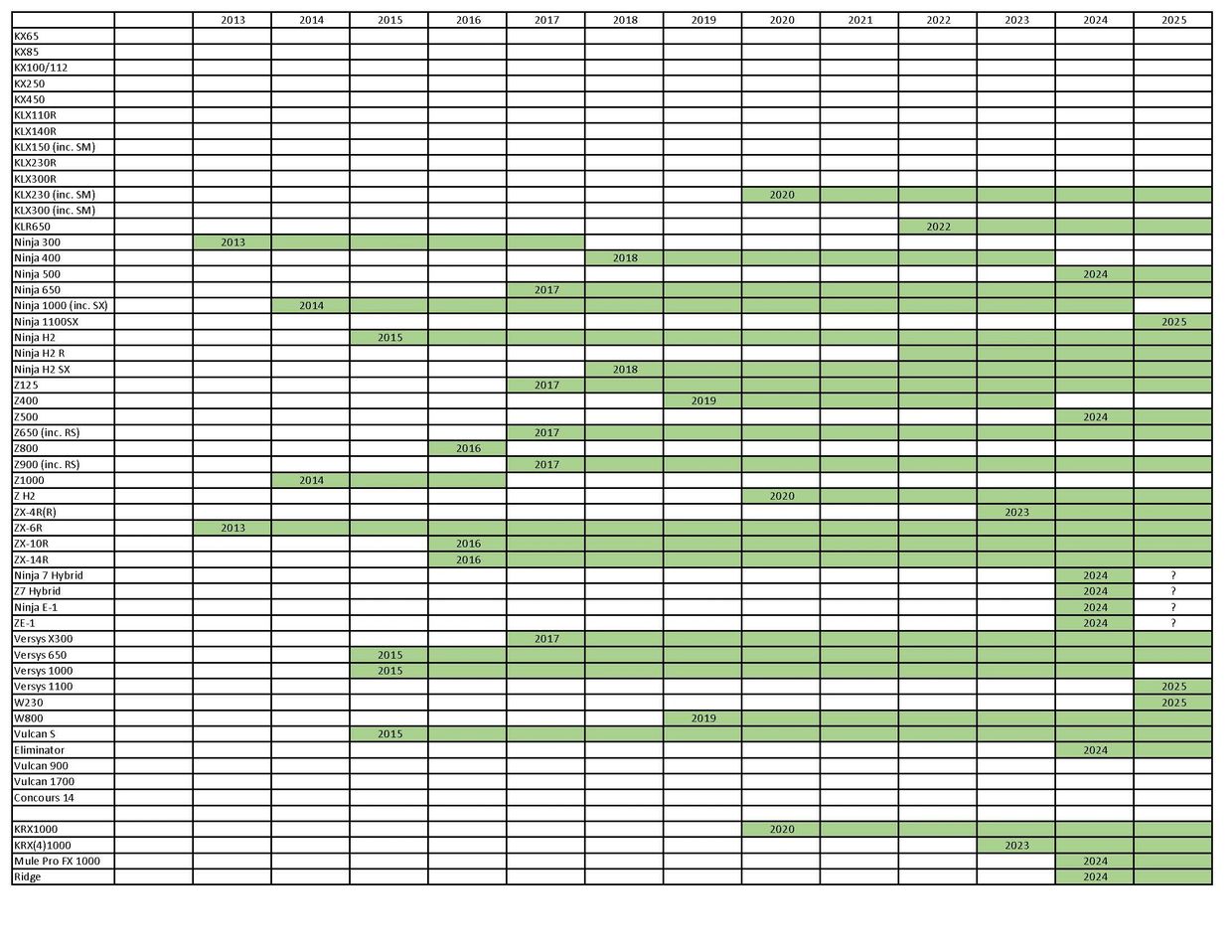

Kawasaki EDR (Event Data Recorder) or "Black Box" data has been implemented in Kawasaki motorcycles starting in 2013 with the Ninja 300 and the ZX-6R.  Since then, the number of models has steadily increased.  The current EDR coverage chart can be seen below.

Currently only three EDR events can be stored in the motorcycle's Engine Control Unit (ECU).  Once three events are recorded, no other events can be recorded.  The EDR events are triggered when the motorcycle falls and goes into Emergency Shutdown (ES).  In addition to the shutdown, the rear wheel would've had to been in motion within the ~10 seconds prior to shutdown.  Some motorcycles take it a step further and require a deceleration of the rear wheel to trigger an event (i.e. from a hard brake).  Once the bike shuts down, eight seconds of data is stored prior to the shutdown.  Some of the main data parameters in a typical download include: engine RPM, throttle position, rear wheel speed, front wheel speed (if equipped), clutch position, gear position, grip position (if equipped), and more.


Various motorcycles have been instrumented to validate the pre-ES data.  Road tests have been performed to validate the wheel speeds as compared to GPS based data acquisition systems.  A partial list of the validated motorcycles to date can be seen below:


13-17 Ninja 300

18-23 Ninja 400

17-23 Ninja 650

13-23 Ninja ZX-6R

16-18 Ninja ZX-10R

14-16 Ninja 1000

15-16 Vulcan S

18-20 Z900RS

17-22 Z900

20-21 Teryx KRX1000


EDR capability for any particular motorcycle can be confirmed by reviewing the Owner's Manual.  However, if you have an off-road vehicle, the manual may not indicate as such.  As an example, the Owner's Manual for the KRX1000 does not make mention of its EDR capability.

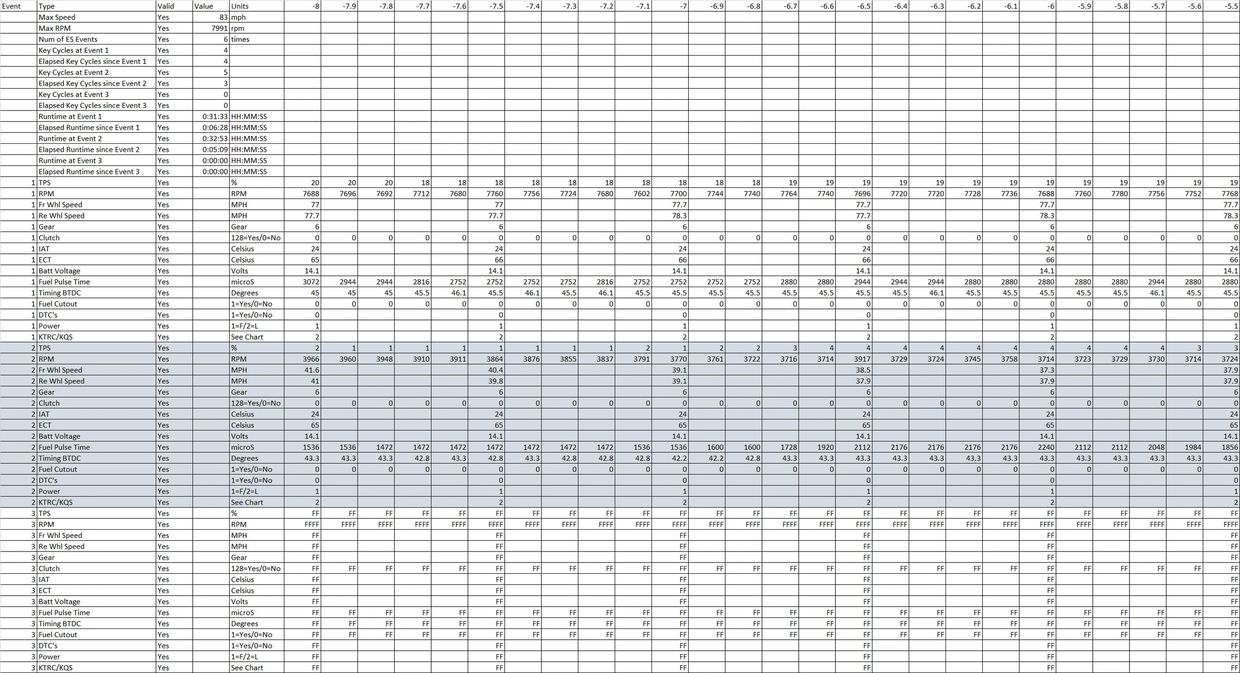

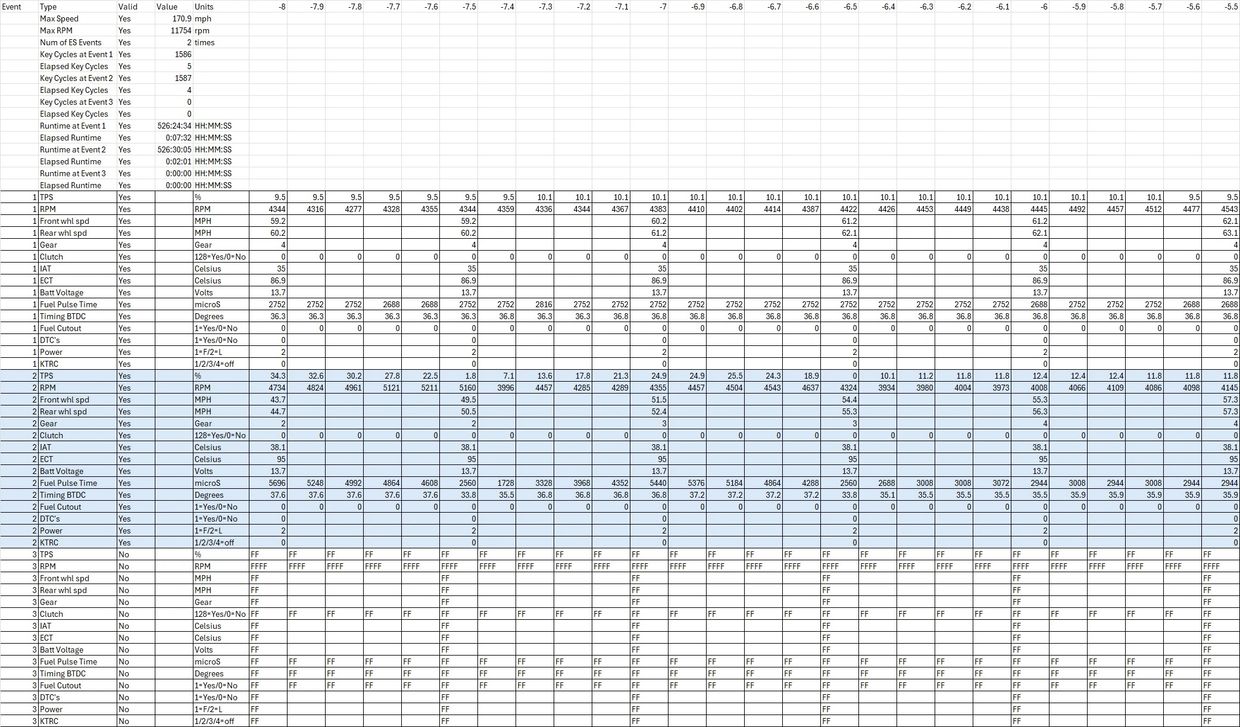

Sample 2021 Kawasaki ZX-6R EDR Data Set

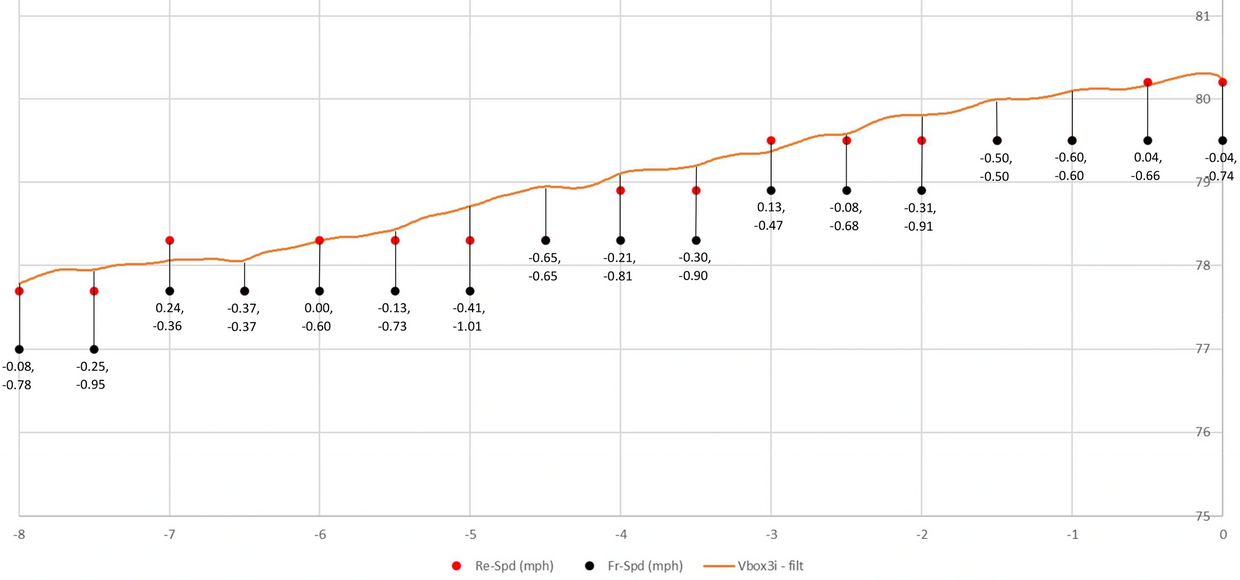

Sample Speed Validation Plot

Typical Kawasaki Tip-Over (Vehicle Down) Sensor

Typical Kawasaki Tip-Over (Vehicle Down) Sensor

Typical Kawasaki Tip-Over (Vehicle Down) Sensor

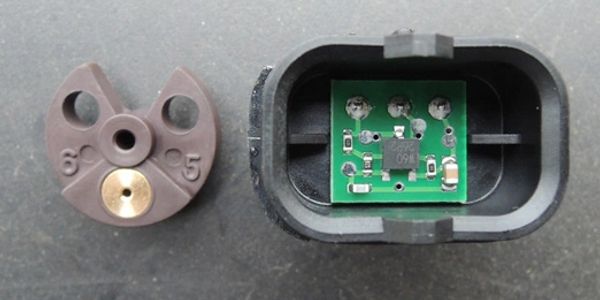

Kawasaki EDR -  tip-over (vehicle down) sensor.  Event Data Recorder. Black Box.

Typical Kawasaki Tip-Over (Vehicle Down) Sensor

Typical Kawasaki Tip-Over (Vehicle Down) Sensor

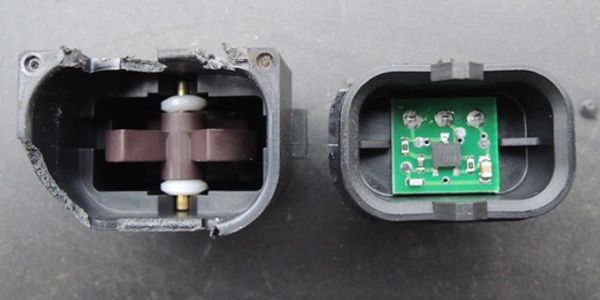

Kawasaki EDR - tip-over (vehicle down) sensor.   Event Data Recorder. Black Box.

Ninja 300 (EX300) ECU

Ninja 300 (EX300) ECU

Ninja 300 (EX300) ECU

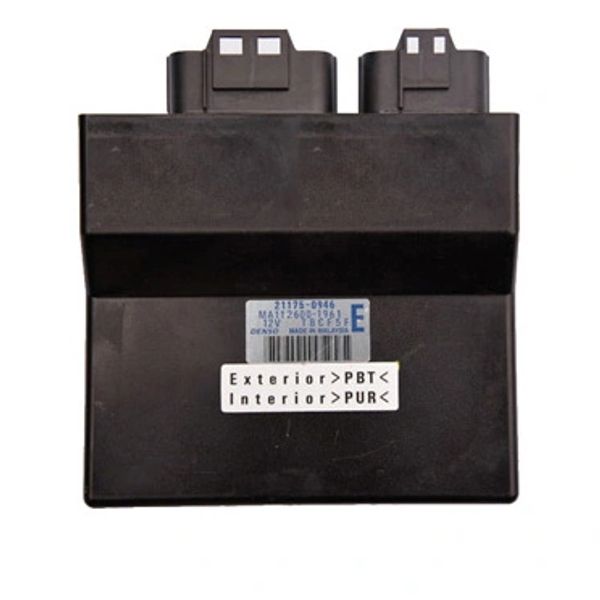

Kawasaki EDR - Ninja 300 (EX300) ECU.  Event Data Recorder. Black Box.

Ninja ZX-10R ECU

Ninja 300 (EX300) ECU

Ninja 300 (EX300) ECU

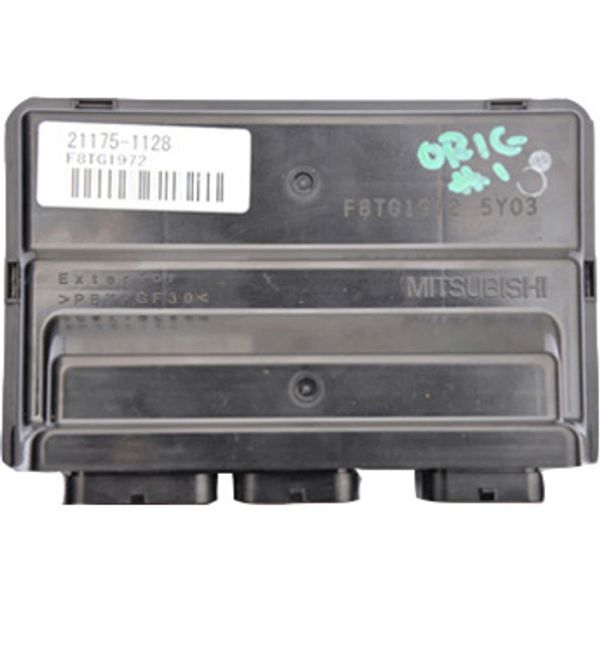

Kawasaki EDR - ZX-10R ECU. Event Data Recorder. Black Box.
